Information for Architects and Engineers

Why Chose CPI Foam?

After extensive research across the world we found Huntsman USA that were at the cutting edge of energy saving spray foam products. Together with their European manufacturing facility Pur Systems GMBH Germany they developed what is now the market leading E:Zero range of spray foam insulation.



open cell spray foam insulation

Why Chose CPI Foam?

NSAI Certified
100%
Nationwide Coverage
100%
Support Service
100%
Meets Building Regulations
100%

Frequently Asked Questions

Yes our E:Zero E500 is fully NSAI Agrément Certified and has had extensive testing done to ensure that it complies fully to Irish Building Regulations and has been tested and approved for use in Irish conditions.

All products are CE marked and can be applied in ANY country in EU and comply with the Harmonized European Standard EN: 14315-1 and European Construction Products Regulation 305/2011.

To comply with building regulations a 50mm air gap must be left between any insulation and felt, this is achieved by the installation of our unique ventilation card that is fitted between the rafters this allows the air from the soffit to be directed up and over the spray foam this ensures the timbers can breathe naturally.

CPI FOAM is a certified ventilation card is NOT CARDBOARD because when cardboard gets wet it will turn to mache and blocks eave ventilation.

E:Zero foam is spray applied on the job site. As it is sprayed if foams up between 50and 100 times in volume,providing a fully adhered, continuous,airtight insulation layer. Even the smallest cracks are perfectly sealed. Since it is sprayed, it fits all shapes and, corners and cavities perfectly.

The finished products contains no formaldehyde and does not release emissions to the atmosphere or destroy the ozone layer. Being completely inert E:Zero insulates for the lifetime of the building and saves approx 50% of the energy, 50% of the carbon emissions associated with the burning of the fossil fuels used to heat or cool homes. There are no VOC's,CFC's, HCFC's, or Urea Formaldehyde used in the manufacture of E:500 foam.

Normally on a retrofit job our trained contractors takes 1- 2 days depending on the complexity and access.

Yes that is no problem we can even have a site specific U value and condensation risk analysis done in our technical dept.

Open Cell Spray Foam Insulation

Open cell spray foam as the name suggests consists of cells that expand and are partially open which allows water vapour to pass through. Open cell spray foam is used in applications such as attic insulation, floor insulation and roof insulation where water vapour needs to leave the structure.

  • CPI Foam have developed the 'Breathable Vent Card System'
  • Open Cell Foam produces unrivaled levels of 'Airtightness'

Closed Cell Spray Foam Insulation

Closed cell spray foam expands less than open cell and is more compact and ridged. It is typically used to insulate steel and concrete can be used indoors and outdoors. Closed cell spray foam is the foam of choice for agricultural, commercial and industrial insulation. There are various densities available so any level of insulation or fire rating can be achieved.

  • Closed Cell when applied is dense, ridgid and water resistant
  • Closed cell is the most versitile insulation material and can applied to any metal or concrete surface.

CPI Foam's Product Specifications

E-500 Product Data Sheet

Open Cell Spray Foam

Mixture of polyether polyols, flame retardants(contains halogen), activators (contains amine) and stabilizer. NSAI Agrément Certified.

Daltotherm TSW 38-00 Product Sheet

Closed Cell Spray Foam

Daltotherm® TSW38 - 00 is a 2 - component closed cell spray polyurethane system with in-place core density of 36 kg/m³. It has been developed as a class 1 system according to BS476 Part 7 and can be usedin residential and commercial buildings.

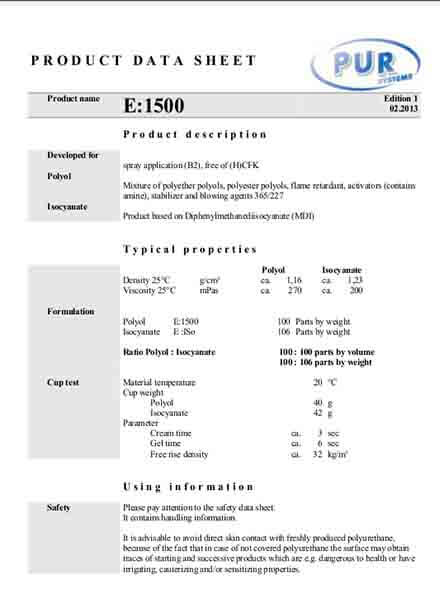

E1500 Product Data Sheet

ISO

Closed Cell Spray Foam

Component of a Polyurethane System

E1500 Safety Data Sheet

Safety Data Sheet

Closed Cell Spray Foam Insulation Safety Data Sheet

E-500 Safety Data Sheet

Open Cell Spray Foam

E:500 REACH GHS/CLP S A F E T Y D A T A S H E E T according to Regulation (EU) No. 453/2010

Daltotherm TSW 38-00

Safety Data Sheet

Daltotherm TSW 38-00 REACH GHS/CLP S A F E T Y D A T A S H E E T according to Regulation (EU) No. 453/2010

Daltotherm-TSW

Fire Cert

To determine the surface spread of flame classification Daltotherm-TSW when tested in accordance with BS 476: Part 7: 1997

Daltotherm TSW38-00

Test Results

Initial Type Test Report – EN 14315-1:2013 Daltotherm TSW38-00
